30-2131-150 - 150 PSIg Brass Sensor Kit
Use a Brass Pressure Sensor where you need a good reference to what pressure is being seen.
• Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 300PSI
• Response Time: < 1ms
• Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Sensor Body: Brass
• Wetted Materials: 304L & 316L Stainless Steel
• Thread: 1/8" NPT Male Thread
• Weight: < 85 Grams
• Output: .5 to 4.5Vdc Linear
• Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

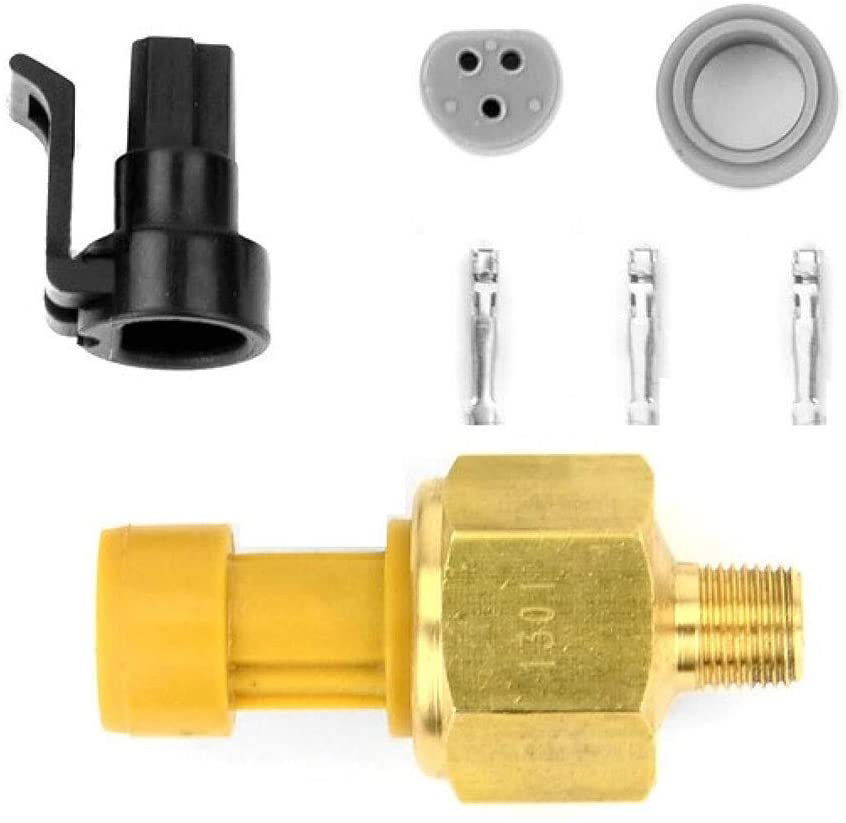

• Includes: 150 PSIg Brass Sensor, Connector, Pins & Pin Lock
*Stock Image Used. Product may vary.
