AEM - 30-2130-150 - 100 PSIa or 10.5 Bar Stainless Sensor Kit
AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.
• Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Use a stainless steel Pressure Sensor where you need exact details of the pressure. Stainless steel sensors are accurate to within 1-percent of full scale (pressure sensors)
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 1500PSI
• Response Time: < 1ms
• Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Sensor Body: Stainless Steel
• Wetted Materials: 304L & 316L Stainless Steel
• Thread: 1/8" NPT Male Thread
• Weight: < 85 Grams
• Output: .5 to 4.5Vdc Linear
• Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

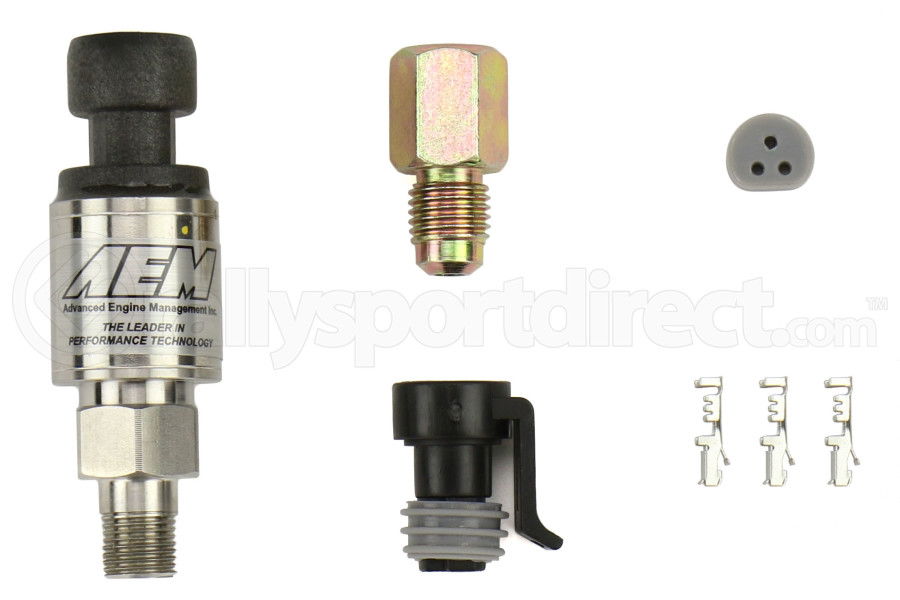

• Includes: 150 PSIa or 7 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter
See Datasheet in downloads.

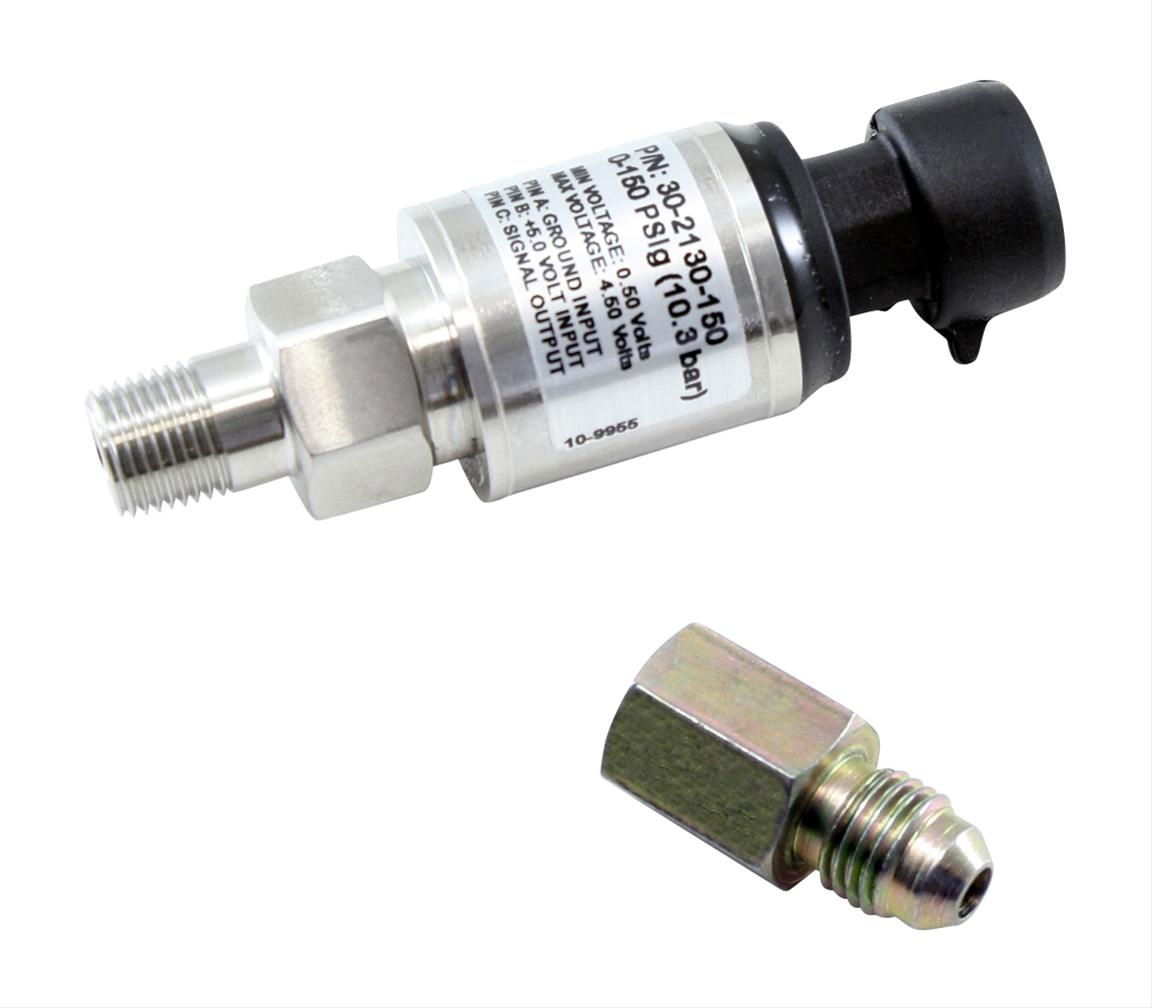

*Stock Image Used. Product may vary.
