AEM: 4 Port AEMnet CAN Hub

"Connect Multiple AEMnet-enabled Devices Together in a Central Location"

AEM’s 4 Port AEMnet CAN Hub is the perfect solution for connecting multiple AEMnet CAN bus-enabled devices together. Provides a central docking station for four AEMnet cables via 4-way DTM-style housings and can power to all of the connected devices on the Hub through a single port (3A max current capacity – NOT for use to power UEGO sensor heaters).
Users can daisy-chain two 4 Port AEMnet CAN Hubs together for a total of 6 connected devices.



Features:
• Easily connect and power multiple AEMnet CAN devices from a central docking station
• Four integrated 4-way DTM-style housings provide reliable AEMnet CAN connections
• Daisy chain two Hubs to connect six AEMnet Devices
• Compact enclosure - 3.45” (87.63mm) Long x 1.18” (29.85mm) Tall
• Safe for engine bay mounting – IP67-rated enclosure
• Mounting hardware included (two 4-40 x 7/8” flat head screws, two 4-40 x 0.375” washers and two 4-4 x 9/64” Nylock nuts)

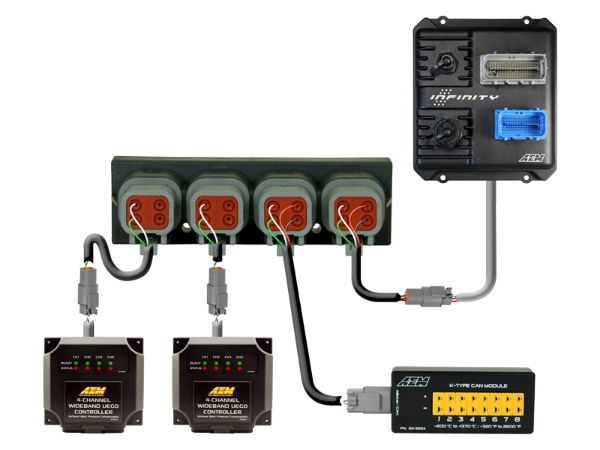

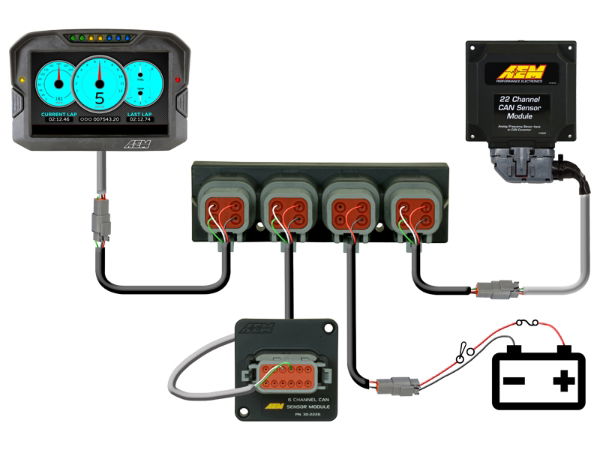

Stock images used. Product may vary. Some wiring options shown in images.
